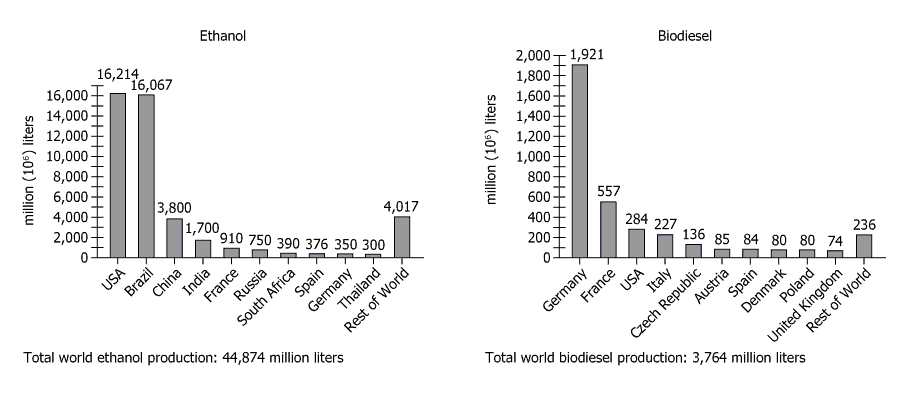

The graphic provides data on world ethanol and biodiesel production, including the top 10 countries in each category, for 2005....

Owning The Dataset

Table 1: Text Analysis

Table 2: Chart Analysis

Key Insights

1. Ethanol production is far more concentrated than biodiesel, with USA and Brazil alone responsible for almost three-quarters of listed ethanol production in 2005.
2. Most top biodiesel producers are European nations, contrasting with ethanol's geographic dominance by North and South America.
3. The 'Rest of World' category means individual production amounts for countries outside the top 10 are not available, limiting detailed global comparisons beyond those listed.

Step-by-Step Solution

Question 1: Finding the Median Ethanol Production

Complete Statement:

For the top 10 ethanol-producing countries in 2005, the median of the given volumes of ethanol produced is _______ million liters.

Breaking Down the Statement

• Statement Breakdown 1:
  • Key Phrase: top 10 ethanol-producing countries
  • Meaning: Refers to the ten countries with the highest ethanol production values in 2005.
  • Relation to Chart: These are the individually labeled countries on the ethanol production chart, excluding any grouped category like 'Rest of World'.
  • Important Implications: We only consider the production values for these 10 countries, not any aggregate or grouped data.

• Statement Breakdown 2:
  • Key Phrase: median of the given volumes
  • Meaning: The median is the middle number in a sorted list. With 10 numbers, it will be the average of the 5th and 6th values when arranged in order.
  • Relation to Chart: This requires us to arrange the top 10 production values from highest to lowest (or vice versa) using the numbers from the chart.
  • Important Implications: Arranging and selecting the 5th and 6th largest values is critical; for 10 values, median = \(\frac{\text{5th + 6th}}{2}\).

• What is needed: We need to identify the 5th and 6th highest ethanol production values for 2005 among the top 10 countries, average them, and select the closest answer from the choices.

Solution:

• Condensed Solution Implementation:
  Arrange the countries' production values in order and calculate the average of the 5th and 6th values.
• Necessary Data points:
  10 production numbers: USA (16,214), Brazil (16,067), China (3,800), India (1,700), France (1,110), Russia (750), South Africa (390), Spain (376), Germany (350), Thailand (300) (all values in million liters).
• Calculations Estimations:
  Arranged in descending order: 16,214, 16,067, 3,800, 1,700, 1,110, 750, 390, 376, 350, 300. The 5th is 1,110, 6th is 750. \(\frac{1,110 + 750}{2} = 930\) million liters.
• Comparison to Answer Choices:
  Choices: 110, 350, 830, 4,090. 930 is closest to 830.

FINAL ANSWER Blank 1: 830

Question 2: Determining the Ratio for the 11th Country

Complete Statement:

In 2005, the ratio of the volume of ethanol produced by the country that ranked 11th in ethanol production by volume to the total volume of ethanol produced by China and India was _______.

Breaking Down the Statement

• Statement Breakdown 1:
  • Key Phrase: country that ranked 11th in ethanol production
  • Meaning: The country with the next highest production after the top 10, not directly shown with its own bar on the chart.
  • Relation to Chart: This country's value is not individually labeled, but must be less than the 10th country's value.

• Statement Breakdown 2:
  • Key Phrase: ratio...to the total volume...produced by China and India
  • Meaning: We must divide the 11th country's (unknown) production by the sum of China's and India's productions.
  • Relation to Chart: China (3,800) and India (1,700) are both labeled; their productions sum to 5,500 million liters.

• What is needed: The ratio between the 11th largest (but unlabeled) country's ethanol production and the combined total for China and India.

Solution:

• Condensed Solution Implementation:
  Estimate an upper bound for the 11th country's production as just under 300 million liters and find the corresponding ratio.
• Necessary Data points:
  Thailand (10th): 300 million liters. China: 3,800 million liters. India: 1,700 million liters. Combined China + India = 5,500 million liters.
• Calculations Estimations:
  Maximum possible ratio = \(\frac{299}{5,500} \approx 0.054\). So, the actual ratio is less than 0.10.
• Comparison to Answer Choices:
  Options: less than 0.10, between 0.1 and 0.75, greater than 0.75. The answer must be 'less than 0.10.'

FINAL ANSWER Blank 2: less than 0.10

Summary

To answer both blanks, we focused only on ordering and identifying the relevant data points. For the median, we found the 5th and 6th countries from the provided set. For the ratio, by realizing that the 11th country's production must be less than the 10th, we estimated the maximum possible ratio, making further details unnecessary.

Question Independence Analysis

The two questions are independent; one uses the top 10 ordered list, the other estimates a ratio involving the unknown 11th value and known countries. The answers do not influence each other.
