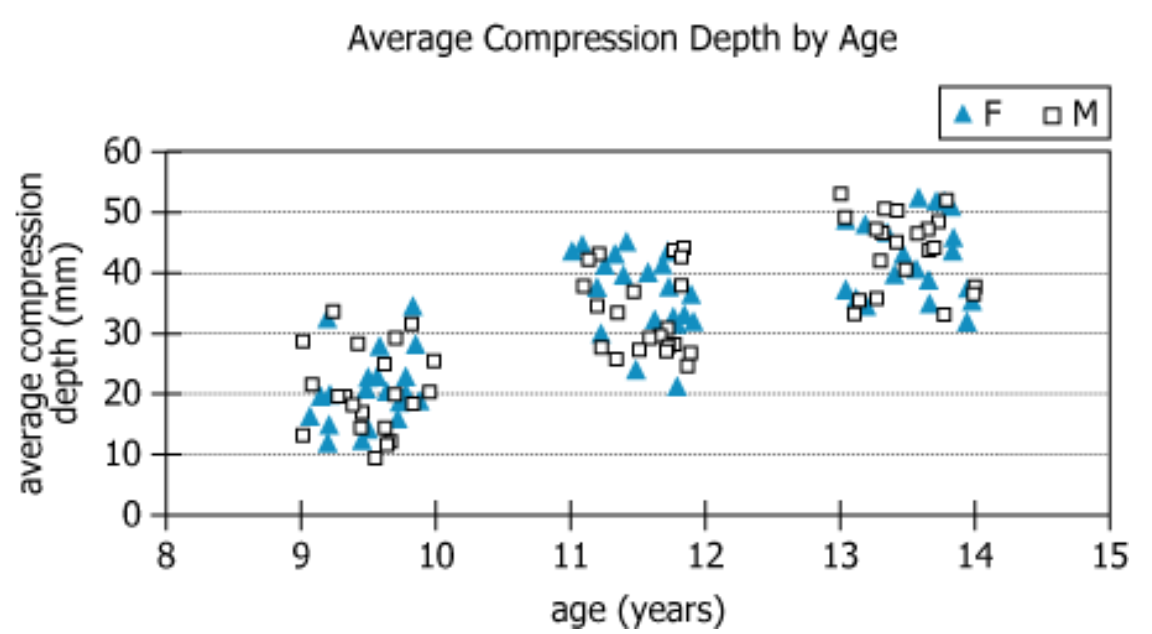

The graph shows data for 40 children, half of whom were male (M) and half of whom were female (F),...

Owning the Dataset

Table 1: Text Analysis

Table 2: Chart Analysis

Key Insights

1. Both male and female children show a clear positive correlation between age and compression depth: older children generally achieve deeper compressions.
2. Only children in the \(13\text{-}14\) year age group have median compression depths within the ideal \(40\text{-}50\text{ mm}\) range; most of their data points fall within this zone.
3. Children in the younger age groups (\(9\text{-}10\) and \(11\text{-}12\) years) mostly perform compressions below the ideal depth, with few or no individuals reaching \(40\text{ mm}\).

Step-by-Step Solution

Question 1: Correlation Between Age and Compression Depth

Complete Statement:

In the study, age and average compression depth are positively correlated for _____

Breaking Down the Statement

• Statement Breakdown 1:
  • Key Phrase: age and average compression depth
    _ Meaning: We are comparing a child's age with the depth of their chest compressions.
    _ Relation to Chart: Age is shown on the x-axis, and average compression depth is shown on the y-axis of the chart.
    _ Important Implications: We need to look for trends between age (left to right) and compression depth (bottom to top).

• Statement Breakdown 2:
  • Key Phrase: positively correlated
    _ Meaning: As one variable increases, the other also increases. In this case, as age increases, we look for whether compression depth also increases.
    _ Relation to Chart: A positive correlation appears as an upward trend from left to right.
    _ Important Implications: We must determine if the data for males, females, or both groups shows an upward trend.

• What is needed: Whether the correlation between age and average compression depth is positive for both, one, or neither gender group.

Solution:

• Condensed Solution Implementation:
  Using visual inspection, check both series of data points (triangles for females, squares for males) for an upward trend as age increases.
• Necessary Data points:
  Triangle (female) and square (male) symbols are both spread diagonally upwards from younger to older ages across the entire chart.
  _ Calculations Estimations:
  No calculation is necessary, just observation: both groups consistently show increases in depth with age.
  _ Comparison to Answer Choices:
  Since both genders exhibit the upward trend, the most appropriate answer is 'both female and male children'.

FINAL ANSWER Blank 1: both female and male children

Question 2: Age Group with Median in Ideal Compression Depth Range

Complete Statement:

Among the three age groups displayed, the median average compression depth is in the ideal range for CPR for the group of children who are at least _____ years old.

Breaking Down the Statement

• Statement Breakdown 1:
  • Key Phrase: median average compression depth
    _ Meaning: The value that separates the higher half and the lower half of compression depth measurements within one age group.
    _ Relation to Chart: Estimate the center of the vertical distribution of data points for each age group cluster.

• Statement Breakdown 2:
  • Key Phrase: ideal range for CPR
    _ Meaning: A specified target range for optimal chest compression depth, which is \(40\text{-}50\text{ mm}\), as given in the information.
    _ Relation to Chart: Data points within this range lie between the \(40\text{ mm}\) and \(50\text{ mm}\) lines on the y-axis.

• What is needed: Which age group's median data point falls within the \(40\text{–}50\text{ mm}\) range.

Solution:

• Condensed Solution Implementation:
  Examine the vertical position of the middle data points for each age group to assess where the median falls.
• Necessary Data points:
  For \(9\text{–}10\) year olds, medians are below \(40\text{ mm}\); for \(11\text{–}12\) year olds, also below \(40\text{ mm}\); for \(13\text{–}14\) year olds, the majority—and thus the median—fall between \(40\text{–}50\text{ mm}\).
  _ Calculations Estimations:
  Visual estimates: \(9\text{–}10\) group (medians well below \(40\text{ mm}\)); \(11\text{–}12\) group (medians still below \(40\text{ mm}\)); \(13\text{–}14\) group (medians are solidly within \(40\text{–}50\text{ mm}\)).
  _ Comparison to Answer Choices:
  The only age group whose median is in the ideal range is 13 but less than 14.

FINAL ANSWER Blank 2: 13 but less than 14

Summary

Both questions required analyzing visual patterns in the chart. The first relied on recognizing a positive trend for both genders, and the second required estimating where median values fell relative to the ideal compression depth range. Both answers could be determined with careful, reasoned visual inspection.

Question Independence Analysis

The two questions are independent. The first requires evaluating overall trends by gender, while the second focuses on median values in specific age ranges. One does not require the other for solution.
