Associations A through E are sponsoring a certain professional conference. Each of the attendees of this conference is a member...

GMAT Graphics Interpretation : (GI) Questions

Source: Mock
Graphics Interpretation
GI - Stats
MEDIUM
...
...
Notes
Post a Query

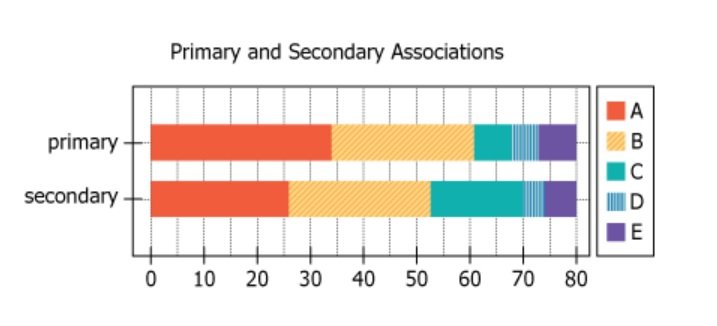

Conference registration results graph showing primary and secondary association choices

Associations A through E are sponsoring a certain professional conference. Each of the attendees of this conference is a member of at least two of these sponsoring organizations. On the conference registration form, each attendee indicated which of these associations he or she considers to be primary and which he or she considers to be secondary. No attendee listed the same association as both primary and secondary. The graph shows these registration results for the 80 attendees.


Select from each drop-down menu the option that creates the most accurate statement about the attendees of this conference.

Associationis more than twice as likely to be listed as a randomly selected attendee's secondary association than as the attendee's primary association.
Of the five associations, Associationis most likely to be among a randomly selected attendee's associations (primary or secondary).
Solution

Owning the Dataset

Table 1: Text Analysis

Text Component Literal Content Simple Interpretation
Conference sponsors "Associations A through E are sponsoring a certain professional conference." Five labeled associations (A, B, C, D, E) are jointly running a conference.
Attendee membership "Each of the attendees...is a member of at least two..." Every attendee must be in at least two associations.
Registration form choices "...each attendee indicated which...associations he or she considers...primary...secondary." Every attendee chose one association as primary, and a different one as secondary.
Exclusivity of choice "No attendee listed the same association as both primary and secondary." No duplicate selection; the primary and secondary must differ.
Total sample size "...registration results for the 80 attendees." The dataset describes exactly 80 participants' choices.

Table 2: Chart Analysis

Chart Component Data Interpretation
Chart Type Horizontal stacked bar chart, 2 bars (Primary, Secondary) Visual comparison of primary vs secondary preferences by association
Associations A, B, C, D, E Used as data series (segments within each bar)
Primary associations A: 34, B: 27, C: 7, D: 5, E: 7 A and B dominate as primary association choices; C, D, and E are infrequent primary choices
Secondary associations A: 26, B: 26, C: 18, D: 4, E: 6 C is three times more common as secondary than primary; A and B are similarly chosen as secondary
Total counts All segments sum to 80 for each bar Exactly matches the attendee count; every attendee chooses one primary and one secondary

Key Insights

  1. Associations A and B are most frequently chosen, together accounting for 61 of 80 primary choices and 52 of 80 secondary choices.
  2. Association C is much more commonly selected as a secondary association (18) than as a primary (7), indicating a strong preference to keep it as a secondary affiliation.
  3. Associations D and E have consistently low selection numbers in both primary and secondary roles, making them the least favored overall among attendees.

Step-by-Step Solution

Question 1: Secondary-to-Primary Ratio Analysis

Complete Statement:

Association __ is more than twice as likely to be listed as a randomly selected attendee's secondary association than as the attendee's primary association.

Breaking Down the Statement
  • Statement Breakdown 1:
    • Key Phrase: more than twice as likely
      • Meaning: This phrase means that, for the association in question, the number of times it is chosen as a secondary association is more than double how often it is chosen as a primary association.
      • Relation to Chart: We need to compare secondary association counts to primary association counts for each association using the provided numbers.
      • Important Implications: We're looking for a secondary-to-primary ratio greater than 2 for at least one association.
  • Statement Breakdown 2:
    • Key Phrase: randomly selected attendee's secondary association / attendee's primary association
      • Meaning: Focus on the counts for each association as a secondary versus primary for attendees.
      • Relation to Chart: Directly compare the secondary and primary values for each association.
      • Important Implications: We are not comparing associations to one another, but rather looking at the ratio for each association individually.
  • What is needed: Identify which association has a secondary count that is more than twice its primary count \\(\frac{\mathrm{secondary}}{\mathrm{primary}} \gt 2\).
Solution:
  • Condensed Solution Implementation:
    Calculate secondary/primary ratios for each association and check for a value greater than 2.
  • Necessary Data points:
    Primary: A=34, B=27, C=7, D=5, E=7. Secondary: A=26, B=26, C=18, D=4, E=6.
    • Calculations Estimations:
      A: \\(\frac{26}{34} ≈ 0.76\); B: \\(\frac{26}{27} ≈ 0.96\); C: \\(\frac{18}{7} ≈ 2.57\); D: \\(\frac{4}{5} = 0.8\); E: \\(\frac{6}{7} ≈ 0.86\).
    • Comparison to Answer Choices:
      Only Association C has a ratio greater than 2 (2.57).
FINAL ANSWER Blank 1: C

Question 2: Overall Likelihood Among All Associations

Complete Statement:

Of the five associations, Association __ is most likely to be among a randomly selected attendee's associations (primary or secondary).

Breaking Down the Statement
  • Statement Breakdown 1:
    • Key Phrase: most likely to be among a randomly selected attendee's associations
      • Meaning: The association with the highest total number of mentions, considering both primary and secondary selections.
      • Relation to Chart: Add together the counts for each association under both primary and secondary categories.
  • Statement Breakdown 2:
    • Key Phrase: (primary or secondary)
      • Meaning: Both counts should be included in the calculation for each association.
      • Relation to Chart: Total = primary + secondary count for each association.
  • What is needed: Which association has the highest combined (primary + secondary) count.
Solution:
  • Condensed Solution Implementation:
    Sum the primary and secondary numbers for each association and identify the largest.
  • Necessary Data points:
    Primary: A=34, B=27, C=7, D=5, E=7. Secondary: A=26, B=26, C=18, D=4, E=6.
    • Calculations Estimations:
      A: \\(34 + 26 = 60\); B: \\(27 + 26 = 53\); C: \\(7 + 18 = 25\); D: \\(5 + 4 = 9\); E: \\(7 + 6 = 13\).
    • Comparison to Answer Choices:
      Association A has the largest total at 60.
FINAL ANSWER Blank 2: A

Summary

Association C is the only association more than twice as likely to be listed as a random attendee's secondary association than primary; Association A is most likely overall to be among a randomly selected attendee's associations because it has the highest combined primary and secondary total.

Question Independence Analysis

The two questions are independent: the answer to one does not influence the answer to the other. The first requires examining the ratio of secondary to primary for each association; the second requires calculating total mentions.

Answer Choices Explained
Association
1A
A
1B
B
1C
C
1D
D
1E
E
is more than twice as likely to be listed as a randomly selected attendee's secondary association than as the attendee's primary association.
Of the five associations, Association
2A
A
2B
B
2C
C
2D
D
2E
E
is most likely to be among a randomly selected attendee's associations (primary or secondary).
